CP-DNW-GPU8G2-96

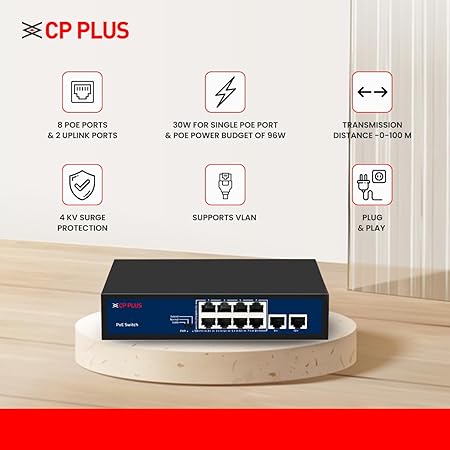

10 Ports Switch with 8 Gigabit PoE Ports & 2 Gigabit Uplink Ports

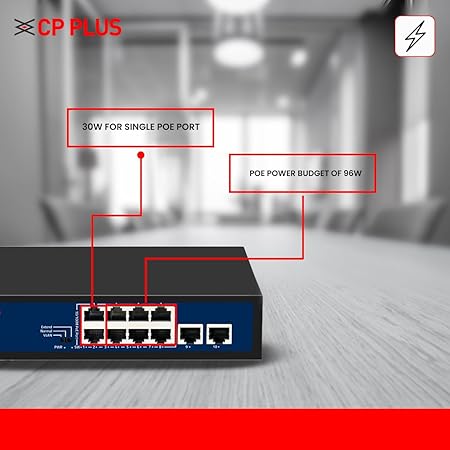

8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
Support IEEE802.3i/802.3u/802.3x/802.3af/802.3ab
2, 10/100Mbps; Transmission Distance: 0-100m

Switch Capacity
20Gbps Full duplex

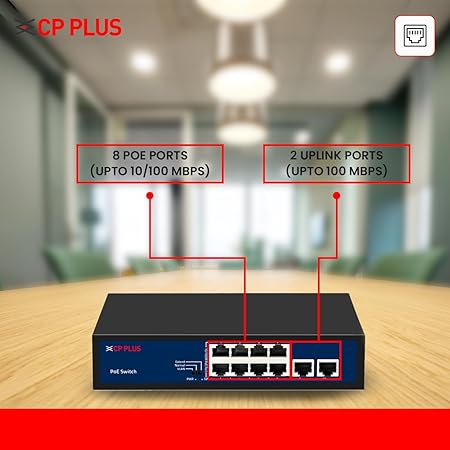

Uplink Ports
2, 1000Mbps; Transmission Distance: 0-100m
PoE Power Budget
96W
Anti-thunder Level
Common mode: 2KV ; Differential mode: 2KV
ESD
Air discharge: 1.5KV ; Contact discharge: 1.5KV
Ethernet Port Light
Light off: Link is disconnected; Red light on: Powering but data disconnected ; Light flash quickly: Data Transmitting
Network Port
10

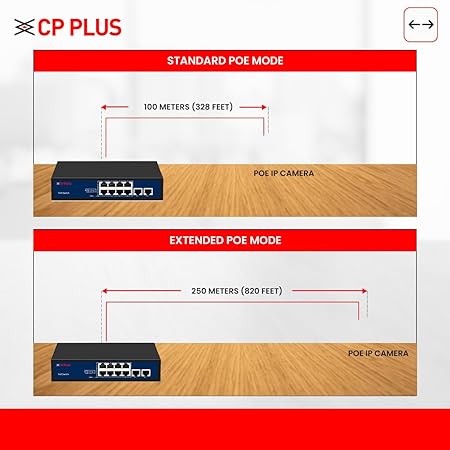

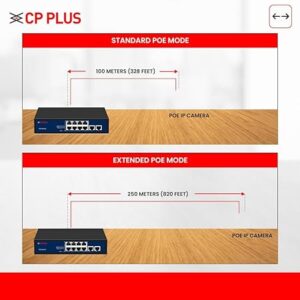

Transmission Distance
0-100m/100 Mbps
PoE Ports
8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port Transmission distance: 0~100
PoE Power Supply
1/2(+), 3/6(-)
PoE Standard
IEEE802.3af, IEEE802.3at
Packet Forwarding Rate
1.488Mpps/port
MAC Address List
2K
Power Source
Built-in Power Supply, Input: 110-264V AC, 50/60Hz
Power Consumption
<5W
Operating Temperature
-10°C~ -50°C
Humidity
10%-95% , non-condensing
Storage Temperature
-40°C~70°C
Dimension
220mm x 140mm x 45mm
